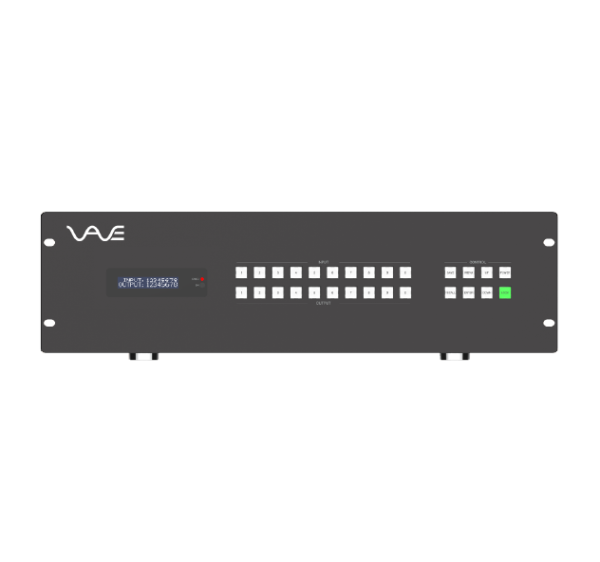

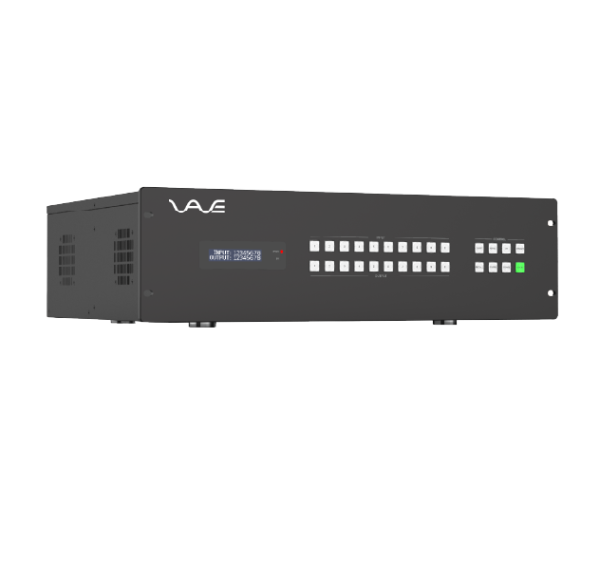

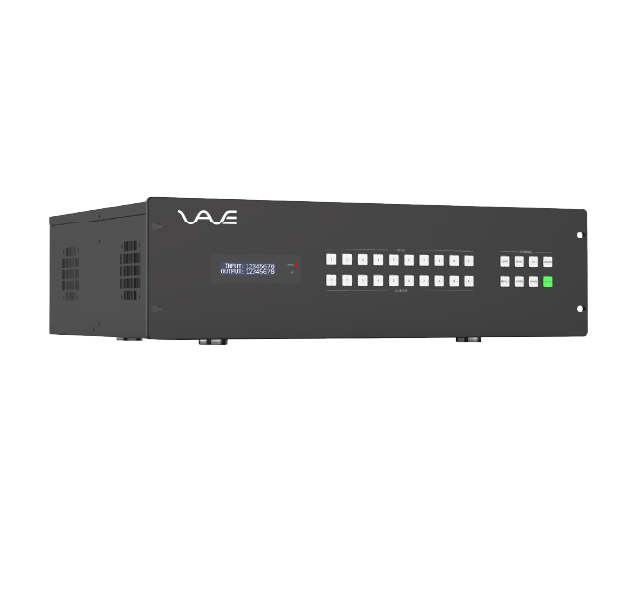

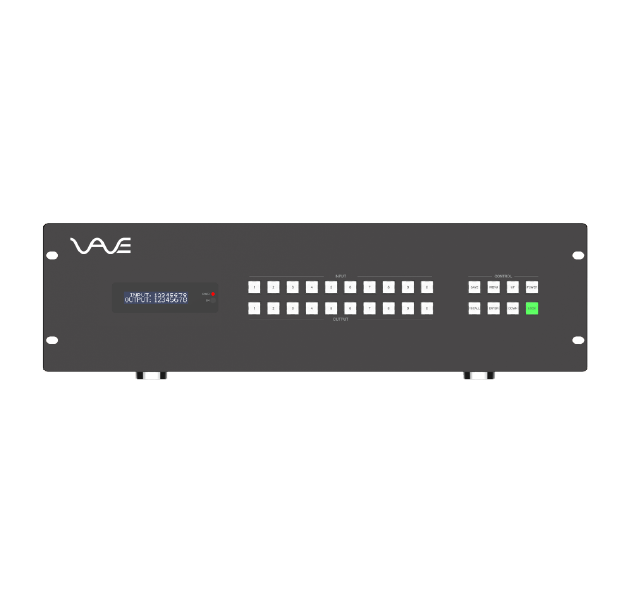

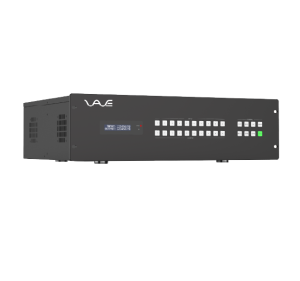

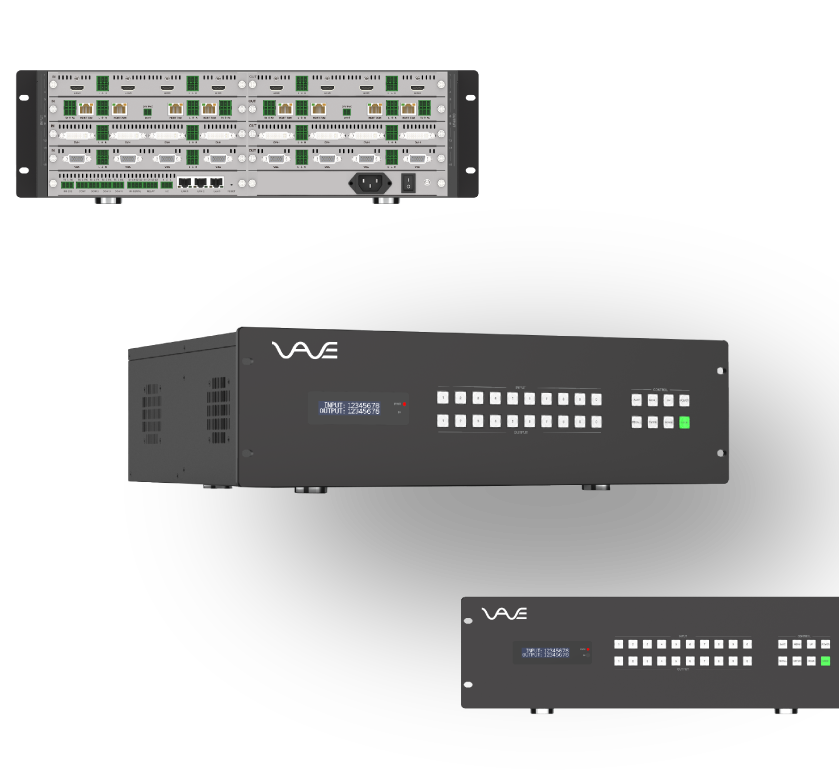

This professional all-in-one Modular Seamless Switching Matrix supports 8–72 inputs/outputs for audio and video, with built-in video wall functionality and control system. It features hardware-based high-speed switching for zero compression, loss, or delay, delivering up to 4K@60Hz (4:4:4, 24bit) quality. It supports HDMI 2.0b, DVI, VGA, SDI, HDBaseT, and fiber optics, with pluggable cards for flexible I/O expansion. Audio embedding/de-embedding is supported. Control options include front panel, IR, RS-232, LAN, PC tool, and Web GUI. Ideal for video conferencing, command centers, government, broadcasting, education, and more.
Feature :
- HDMI 2.0b and HDCP 2.2 compliant
- HDMI 18Gbps video bandwidth, up to 4K60 YCbCr 4:4:4 24bit

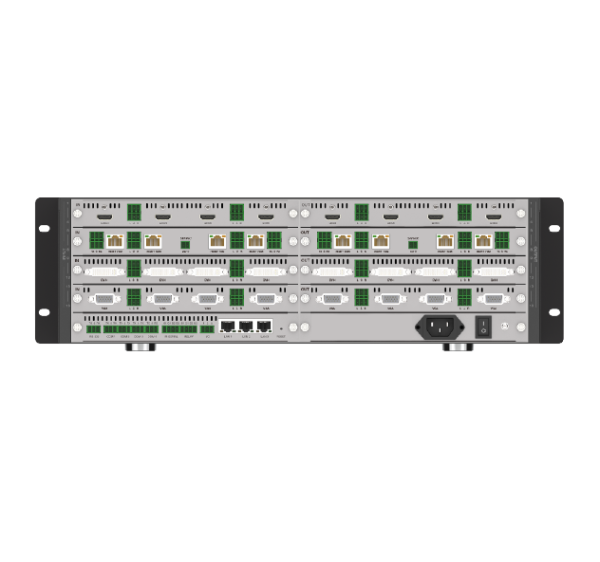

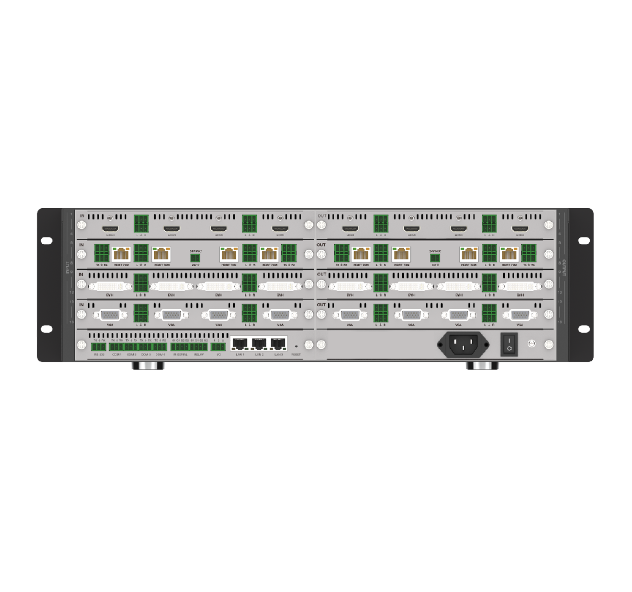

- Pluggable card structure (One card with four channels)
- Support 8/16/36/72 channel video signal inputs and outputs
- Multiple input/output cards with HDMI, DVI-U (DVI/YPbPr/CVBS), VGA, 3G/HD/SD-SDI,HDBaseT and optical fiber
- Video resolution up to 1920×1200p60hz (2K series card), 3840x2160p60hz (4K series card)
- Seamless switching without image tear, black screen or flicker in the switching process
- Based on Gen-Lock video wall splicing technology, the latency between any output channel is less than 0.1ms
- Any splicing modes in the allowed range of 8×8~72×72, especially suitable for LCD/LED video wall<
- Multiple output resolutions to meet the needs of different types of display devices
- Adopt pure hardware high-speed matrix switching chip with high integration
- Built-in signal equalization, signal recovery and signal redriver
- Built-in video quality enhancement, output video quality can be adjusted
- Built-in HDCP processing logic to avoid HDCP compatibility issues
- Input cards support audio embedding, output cards support audio de-embedding
- Analog audio embedding supports LPCM 2.0CH, analog audio and video signals are input synchronously
- Analog audio de-embedding supports LPCM 2.0CH, analog audio and video signals are output synchronously
- Up to 64 kinds of scene presets can be recalled
- Advanced EDID management (Internal EDID or copy from any output devices)
- Control via front panel buttons, IR, RS-232, TCP/IP, Web GUI or PC program
- Built-in intelligent control system with user-friendly GUI
- Silent fan design, noiseless, stable performance
- AC power port with built-in power module
- Standard rack size design, convenient for installation
